HDR technology, showing unprecedented excitement
Faster installation of the COB led display
Front installation results in a thinner and more aesthetically pleasing LED display
Provides easier and quicker maintenance in the later stages.
Package Comparison
Flip Chip COB directly attaches LED chips to the substrate, reducing thermal resistance and improving heat dissipation efficiency. This enhances the LED's ability to dissipate heat during high-power operation, thus prolonging its lifespan
Optical Feature
The COB LED display screen offers an expansive viewing angle of 170 degrees, providing exceptional visibility from various vantage points

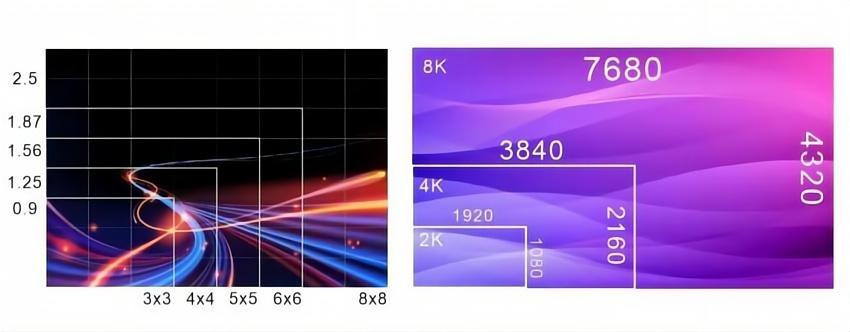

High Resolution
Achieve 2K,4K,8K with different pixels16:9
16:9 Golden Ratio Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions
Data security
The power supply and receiving card can support double backup
Multiple Installation Methods
Supports suspension, wall mounting, and bracket installation.
Technical Parameter
|
Item |
MC0.93 |
MC1.25 |
MC1.56 |
MC1.87 |
MC2.34 |
|
|
Technical |
Pixel Pitch (mm) |
0.9375 |
1.25 |
1.5625 |
1.875 |
2.34 |
|
LED Configuration |
FLIP CHIPCOB 1R1G1B Common cathode |
|||||
|
LED Type |
2 x 4 |
2 x 4 |
2 x 4 |
2 x 4 |
2 x 4 |
|
|
Physical Density (dot/m²) |
1,137,778 |
640,000 |
409,600 |
284,444 |
182044 |
|
|
Module Size (W ×H ×D) mm |
150x168.75 |
150x168.75 |
150x168.75 |
150x168.75 |
150x168.75 |
|
|
Module Resolution (W ×H) |
160x180 |
120x135 |
96*108 |
80*90 |
64*72 |
|
|
Module Material |
No Plastic housing |
|||||
|
Cabinet Size (W ×H ×D) mm |
600x337.5x32.5 |
600x337.5x32.5 |
600x337.5x32.5 |
600x337.5x32.5 |
600x337.5x32.5 |
|
|
Cabinet resolution (W×H) dot |
640x360 |
480x270 |
384x216 |
320x180 |
256*144 |
|
|
Cabinet Material |
Die Casting Aluminum |
|||||
|
Scanning Mode |
1/60 |
1/45 |
1/48 |
1/30 |
1/16 |
|
|
Cabinet Flatness (mm) |
≤0.10 |
|||||
|
Grey Scale (Bit) |
14Bit+Control Software 2Bit=16Bit |
|||||
|
Protection Level |
LED Lamp side IP65, rear IP45 |
|||||
|
Installation/Service Method |
Front or back installation/Front service |
|||||
|
Optical |
Brightness |
50-500cd/㎡adjustable |
||||
|
Color Temperature |
3200-9300K adjustable |
|||||
|
Brightness Uniformity |
≥98% |
|||||
|
Color Uniformity |
Within 0.003Cx, Cy |
|||||
|
Horizontal/Vertical View Angle |
≥170° |
|||||
|
Contrast Ratio |
≥10000:1 |
|||||
|
Color Calibration of Single Dot |
Yes |
|||||
|
Brightness Calibration of Single Dot |
Yes |
|||||
|
Operation |
Drive Mode |
Constant Current Drive |
||||
|
Standard Receiving Card |
A8S/A7S/A5S |
|||||
|
Refresh Frame Frequency |
50/60 Hz |
|||||
|
Max Refresh Rate |
≥2880Hz |
≥3840Hz |
||||
|
Network Connection Port |
RJ45 |
|||||
|
Input Voltage AC |
110-220V |
|||||
|
Module Max Current DC |
DC4.2V |
DC4.2V |
DC4.2V |
DC4.2V |
DC4.2V |
|
|
Module Input Voltage DC |
2.5A |
2.5A |
2.5A |
2.5A |
2.5A |
|
|
Cabinet Max Power Consumption |
≤450W/m2 |
≤450W/m2 |
≤450W/m2 |
≤450W/m2 |
≤450W/m2 |
|
|
Cabinet Aver. Power Consumption |
≤150W/m2 |
≤150W/m2 |
≤150W/m2 |
≤150W/m2 |
≤150W/m2 |
|
|
Working Temperature |
-20℃～+50℃ |
|||||
|
Working Humidity |
10%～95%RH |
|||||
